WR - Load weighing sensor
-
INDIVIDUAL ELEVATOR WIRE ROPE SYSTEM SENSOR
The WR individual wire rope sensor provides an easy and precise solution for controlling the load in traction lifts.

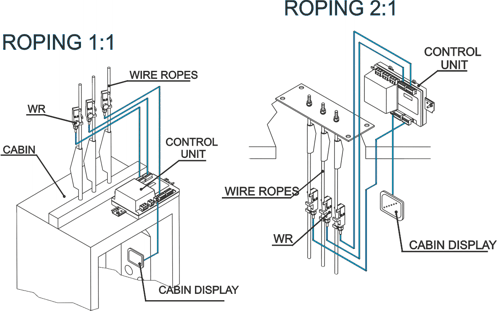

When used with the MWR-4 control unit, it becomes the perfect solution for installations in which it is necessary to monitor the balance of the rope tension, or where there is extremely limited headroom.
FEATURES:
- Automatic calibration using the wire rope diameter, meaning no need for test weights.
- Quick and easy installation (5 mins.)
- Reduced dimensions.
-
MECHANICAL FEATURES:
Operating capacity (RC) 1000 Kg Safe load 150% RC Overload 200% RC Deflection at overload <0.5 mm Hysteresis 0.1% RC Total error <5% RC Weight 0.2 Kg/sensor TEMPERATURE FEATURES:
Operating temperature -10ºC / 50ºC -
-
DOWNLOADS:
WR-2016
2016-11-18
Multilanguage
419.02 KB
