CAB - Load weighing sensor
-
ELEVATOR CABIN SENSOR

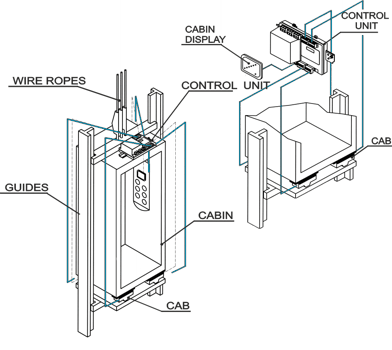

CAB load weighing system provides the most precise solution for controlling the weight in any type of lift.
The reliability of this solution means it is recommended for any installation in which it is necessary to control the load with a high level of accuracy, such as installations which require the detection of “presence” inside the cabin.
This solution is recommended for any new installation, or installations in which a high level of accuracy and reliability is required.
Two different versions CAB-800 and CAB-200 for 800Kg and 200Kg loads.
FEATURES:
- Unparalleled accuracy and reliability.
- No need for maintenance.
- Automatic calibration, meaning no need for test weights.
- Total accurate.
-
MECHANICAL FEATURES:
Operating capacity (RC) 800Kg / 200Kg Safe load 150% CT Overload 200% CT Deflection at overload <0.5 mm Hysteresis <0.1% CT Total error <2% CT Weight 0.6 Kg/Sensor TEMPERATURE FEATURES:
Operating temperature -10ºC / 50ºC -
-
DOWNLOADS:
CAB-2016
2016-11-17
Multilanguage
403.87 KB
