CCP - Load weighing sensor
-

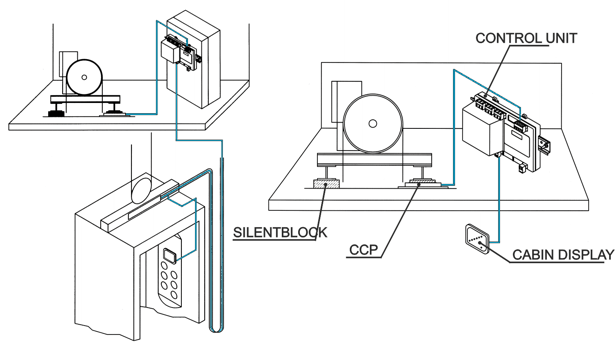

ELEVATOR MOTOR BEDFRAME SYSTEM
The CCP sensor provides an alternative solution for controlling the load in installations where it is not possible to install other devices.
The fact that this device can be used with all types of roping 1:1, 2:1 & 4:1, make it a good alternative solution in complicated installations.
Two different versions CCP-2000 and CCP-4000 for 2000Kg and 4000Kg loads.
FEATURES:
- Calibration with test weights.
- High capacity.
-
MECHANICAL FEATURES:
Operating capacity (RC) 2000Kg / 8000Kg Safe load 150% RC Overload 200% RC Deflection at overload <0.5 mm Hysteresis <0.1% RC Total error <2% RC Weight 2 Kg/sensor TEMPERATURE FEATURES:
Operating temperature -10ºC / 50ºC -
-
DOWNLOADS:
CCP-2016
2016-11-17
Multilanguage
418.08 KB
