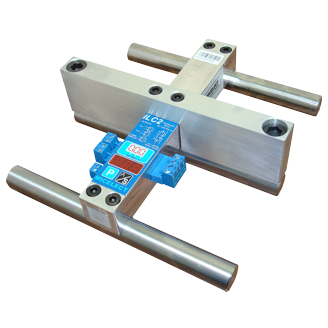

ILC2 - Load weighing sensor
-
INTELLIGENT ELEVATOR WIRE ROPE SENSOR
The ILC2 intelligent wire rope sensor provides an easy and precise solution for controlling the load in traction lifts.
Its quick and easy installation (only 5 mins.) and calibration through the diameter of the ropes make it the perfect solution for lift modernizations in which the capacity is less than 999 KG.
FEATURES:
- 2 programmable alarms: Full load & Overload.
- Integrated display to show weight values up to 999 KG.
- Automatic calibration using the wire rope diameter, meaning no need for test weights.
- Universal rope clamps for all types of rope distribution.
- EEPROM data memory.
- Integrated software to correct weight increases due to compensating chain.
- Quick and easy installation (5 mins.)

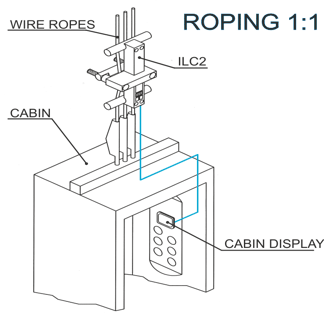

- Suitable for 1:1-roped installations.
- Connection options:
- Connectors.
- Cable.
-
ELECTRICAL FEATURES:
Power supply voltage 24-48 Vdc Disabling input 24-230 Vac/dc Relay contacts 250Vac 3A MECHANICAL FEATURES:
Operating capacity (RC) 3,500 Kg Safe load 150% RC Overload 200% RC Deflection at overload <0.5 mm Hysteresis <0.1% RC Total error <3% RC Weight 2 Kg TEMPERATURE FEATURES:
Operating temperature -10ºC / 50ºC -
-
DOWNLOADS:
ILC2-2016
2016-11-18
Multilanguage
521.08 KB
