LM3D - Load weighing controller

UNIVERSAL ELECTRONIC CONTROL UNIT

The LM3D universal control unit is the most complete control unit which has all the possible options available to control the load in elevators and lifts.

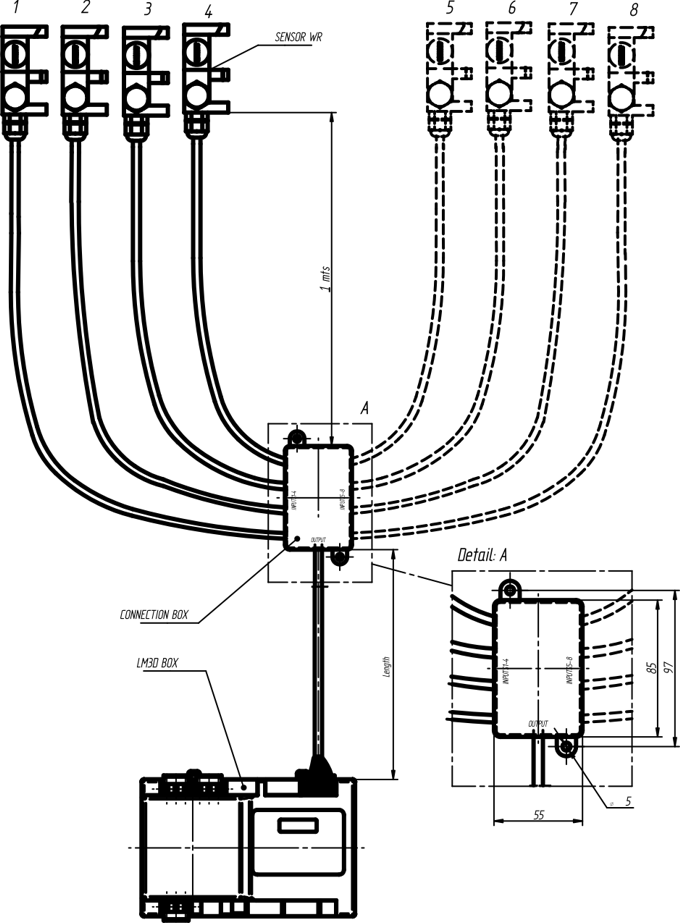

This control unit can be used with any load weighing sensor manufactured by MICELECT.

FEATURES:

• MODELS AVAILABLE:
  • DIN Rail.
  • IP-65 rated plastic box.
• STANDARD FEATURES:
  • 3 Relays.
  • Integrated software to correct weight increases due to compensating chain.
  • Cabin indicator output.
• OPTIONS:
  • Analogue output in mA (0-20, 0-24, 4-20).
  • Voltage output (+/- 10Vdc).
  • Voltage output (+/- 5Vdc).
  • Voltage output (0-10Vdc).
  • Voltage output (0-5Vdc).
  • Voltage output (-10 / 0 / 10Vdc).
  • Communications RS485.
  • Pre-opening doors software.
  • Rollback control software.

ELECTRICAL FEATURES:

MECHANICAL FEATURES:

TEMPERATURE FEATURES:

DOWNLOADS:

Files:

LM3D-2016HOT

LM3D datasheet

 2016-11-17

  Multilanguage

 3.48 MB

Download
